That Clunk Has a Name

Steering & Suspension Repair in Edmonton — What It Costs and How to Tell What Is Wrong

Most people arrive at this page with a noise rather than a diagnosis. A clunk over the railway tracks, a hum that rises with speed, a steering wheel sitting five degrees off centre. This page is written to help you work out what you are dealing with and roughly what it will cost, before you commit to anything.

A & R Automotive has been diagnosing front-end problems at 2687-96 Street NW since 1987. AMVIC licensed, NAPA AutoPro, AMA/CAA approved. If you would rather just have someone look at it, call 780-468-3052 — but read the symptom section first, because it will make the conversation shorter.

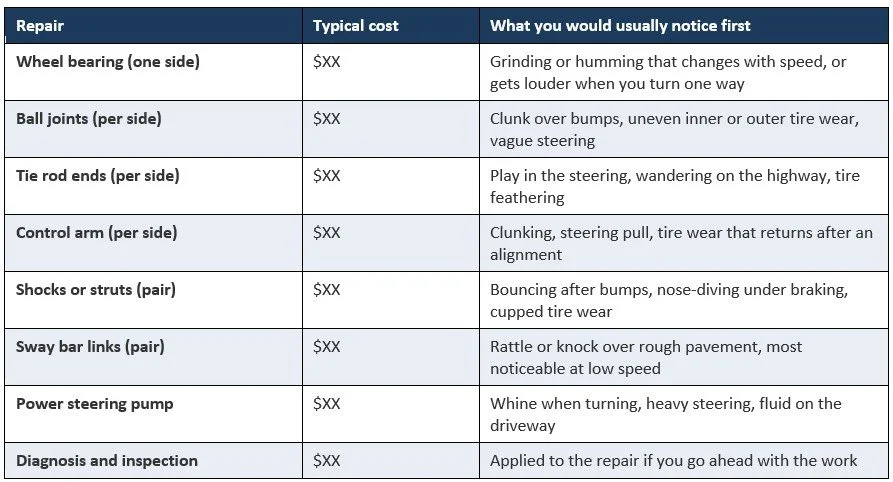

What Steering and Suspension Repairs Cost

Prices below are for most cars and light trucks and include parts and labour. Heavier trucks, European vehicles and anything seized solid by road salt run higher, and we will tell you before we start rather than after.

Two things worth knowing before you compare these against anywhere else. Suspension components come in pairs, and replacing one side of a worn pair usually means coming back for the other within a year — we will tell you when doing both at once genuinely saves you money and when it is just a bigger invoice. And most suspension work should be followed by an alignment, because you have changed the geometry. Anyone quoting suspension repair without mentioning alignment is quoting you an incomplete job.

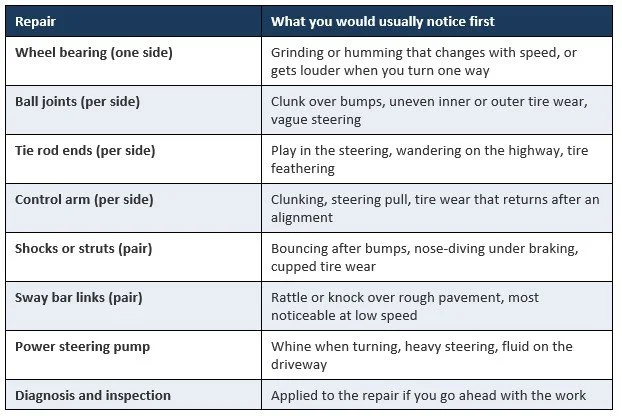

Working Out What Is Wrong

Suspension problems announce themselves by sound and feel, and the pattern usually narrows it down quickly.

A hum or grind that changes with road speed

Almost always a wheel bearing. The giveaway is that it changes when you steer — swing gently left and right on an empty road, and if the noise gets louder loading one side and quieter loading the other, that is the bearing on the loaded side. It is not urgent the day it starts, but a failed bearing can seize, so it is not something to run for months either.

A clunk over bumps or railway tracks

Ball joints, sway bar links or control arm bushings. Sway bar links are the cheapest of the three and the most common cause, which is the good news. Ball joints are the one that matters — a badly worn ball joint can separate, and that is a wheel folding under the car. We check them by lifting the vehicle and loading the joint, which takes a couple of minutes and is not something you can assess from the driver's seat.

The steering wheel is not centred when you are going straight

Usually alignment rather than a worn part, and often the aftermath of a pothole. If it appeared suddenly after hitting something, get it looked at — a hard impact can bend a tie rod or a control arm, and driving on it will chew through a tire in weeks.

Play in the steering, or the car wanders on the highway

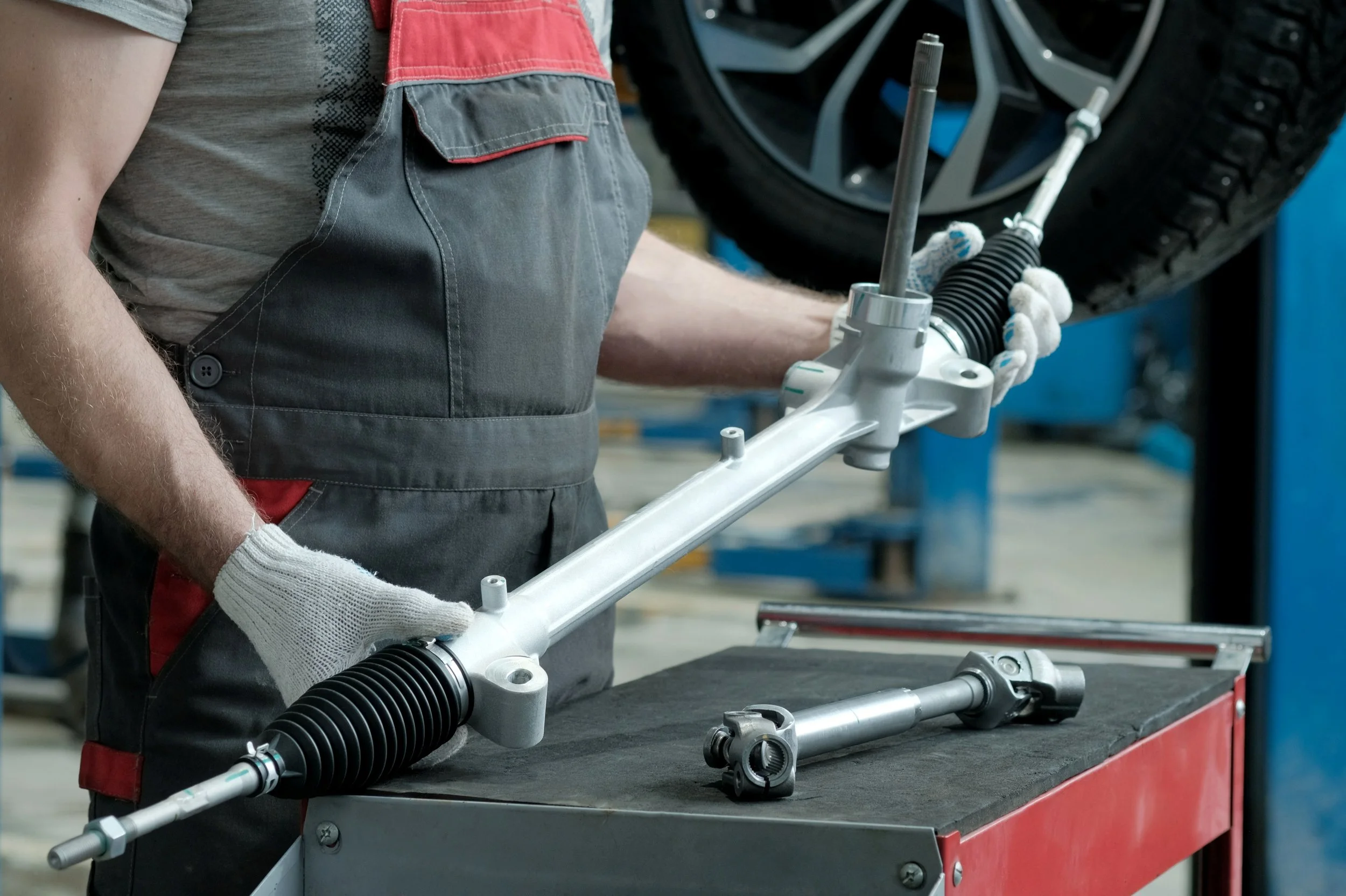

Tie rod ends, an inner rack, or a worn steering rack. If you can rock the wheel a few degrees before the front tires respond, something in the linkage has slack in it. This is a safety item rather than a comfort one.

The car bounces after bumps, or the nose dives hard under braking

Shocks or struts. They wear so gradually that most people never notice until they drive a car with fresh ones. The practical test is the bounce test — push down hard on one corner and let go. It should settle in one rebound. If it keeps oscillating, that damper is finished.

A whine when turning, or fluid on the driveway

Power steering. A whine that rises with steering effort is usually the pump; a leak is usually a hose or a seal. Check the fluid level before assuming the worst — a low reservoir with no visible leak is sometimes just a weeping hose clamp.

Edmonton Is Hard on Suspension

This is not sales talk, it is road salt and freeze-thaw. Two things happen to suspension components here that do not happen in milder cities.

Salt corrodes fasteners. A ball joint that would take twenty minutes to change in Vancouver can take an hour here because the pinch bolt has rusted solid and has to be cut out. That is why an Edmonton quote sometimes looks higher than a number you found online, and it is worth understanding rather than assuming you are being overcharged.

And potholes do real damage. Spring in Edmonton is genuinely hard on front-end components — a hard hit can bend a control arm, crack a coil spring or knock the alignment out far enough to ruin a set of tires. If you hit something badly and the car has not felt right since, do not wait for it to settle. It will not.

How Long These Parts Should Last

Shocks and struts are usually good for 100,000 to 150,000 kilometres, though Edmonton roads push that to the lower end. Wheel bearings often go 150,000 or more. Ball joints and tie rod ends vary enormously with road conditions and whether the boots have stayed intact — a split boot lets water and salt into the joint and the part is finished within a year or two of that happening.

None of these are maintenance items on a schedule. They are inspection items. We check them at every oil change, which is the cheapest way to find a torn boot before it turns into a failed joint.

Why Have Us Do It

Suspension work is where guessing gets expensive, because the parts are not cheap and the symptoms overlap. A hum could be a bearing, or it could be a cupped tire. A clunk could be a ball joint, or it could be a sway bar link costing a fifth as much.

We diagnose before we quote, we show you the play in the joint rather than describing it, and we tell you when the answer is the cheaper part. We are also a full mechanical shop, so if the noise turns out to be a brake or a tire rather than the suspension, we can just fix that instead of sending you somewhere else.

Everything we install carries the NAPA AutoPro nationwide parts and labour warranty, and we are AMVIC licensed and AMA/CAA approved, which means somebody independent reviews us.
